Fuel Storage Tank

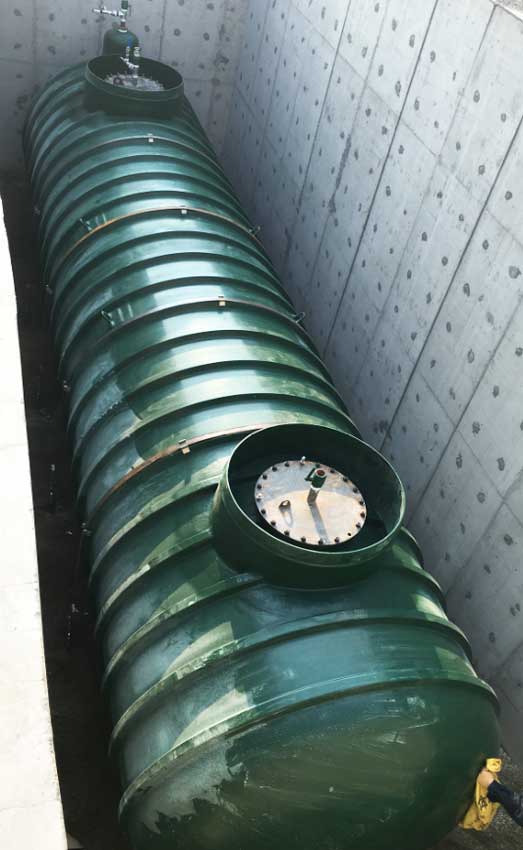

The tank is used underground for storage of fuel stations with a superior product life cycle over steel. The tank has a uniform sandwich space with reinforced ribs. The internal and external walls are FRP material, the between space have 3D structure. There is a leak detector and continuous interstitial monitoring system in the tank.

Features

  • High strength, corrosion resistant.
  • Environment friendly, light weight

  • UL standard thirty years quality assurance
  • No cathodic protection.
  • No high voltage pinhole detection.
  • Precast anchoring, easy ship & install.
  • Maintenance free, long service life.

Regular Constant

  • Storage medium: petrol, diesel, methanol gasoline, ethanol gasoline.
  • Design pressure(KPa): 172 inner, 35 external.
  • Working temperature: ambient temperature.

  • Designed to meet custom‘s specifications.
Fuel Storage Tank

Supple Scope

Nominal Volume [m³] 20 30 40 50
 Geometric Volume [g/cm³] 20.5 30.4 40.4 50.5
DN [mm] 2600 390 2600 2600
Length [mm] 4300 6150 8050 9950
Manhole DN [mm] 600 600 600 600
Manhole Qty 2 2 2 2
Ground Anchor Qty 2 4 4 6
Anti-floating Belt Qty 2 4 4 6

The above data is for reference only, other specifications need to be redesigned.
